CONTIjet®

The CONTIjet® is the solution for fully continuous production processes in which the focus is on automation for maximum efficiency and consistent product quality. The system processes large quantities of identical products in the shortest possible process time, with minimal weight loss and absolute consistency. Whether sausages, bacon, duck, or similar products, the CONTIjet® dries, smokes, cooks, showers, or chills in a continuous workflow and thus meets the strict demands placed on industrial production processes.

Applications

Key facts about CONTIjet® at a glance

Application areas

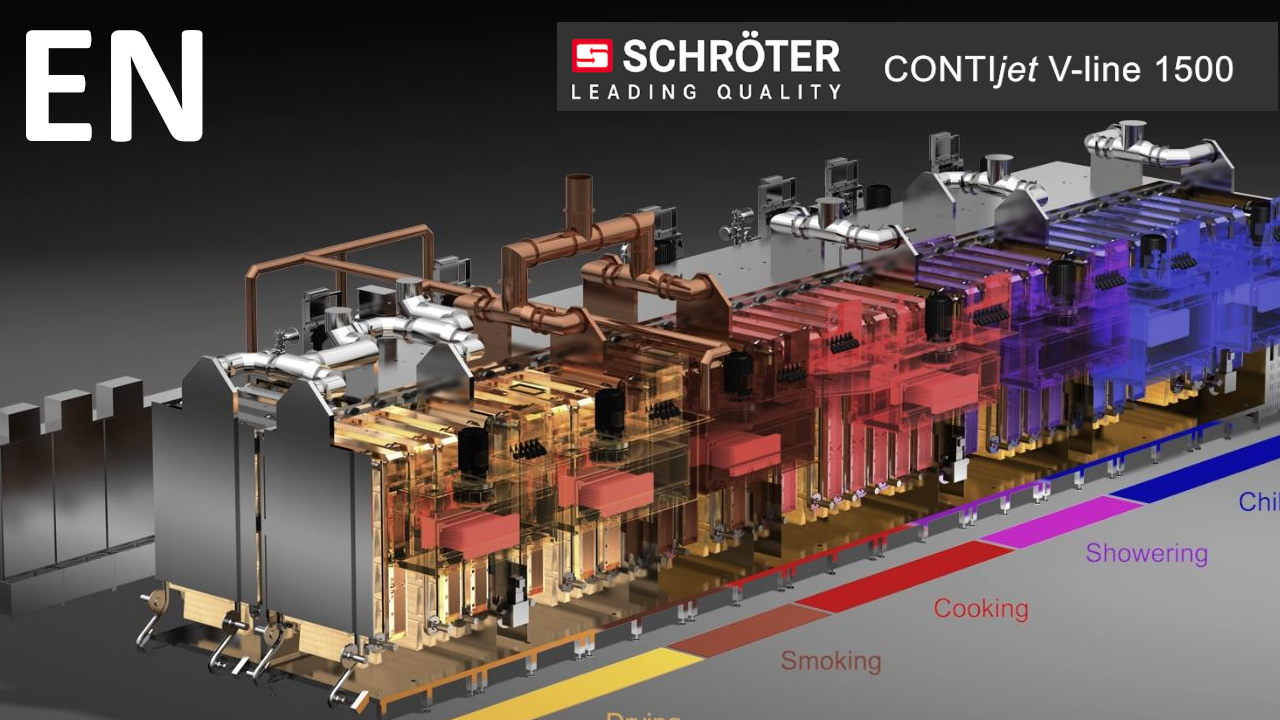

Roasting, drying, smoking, cooking, showering, cold air and/or ice water cooling

System concept

Fully continuous production process
H-LINE: horizontal product transport

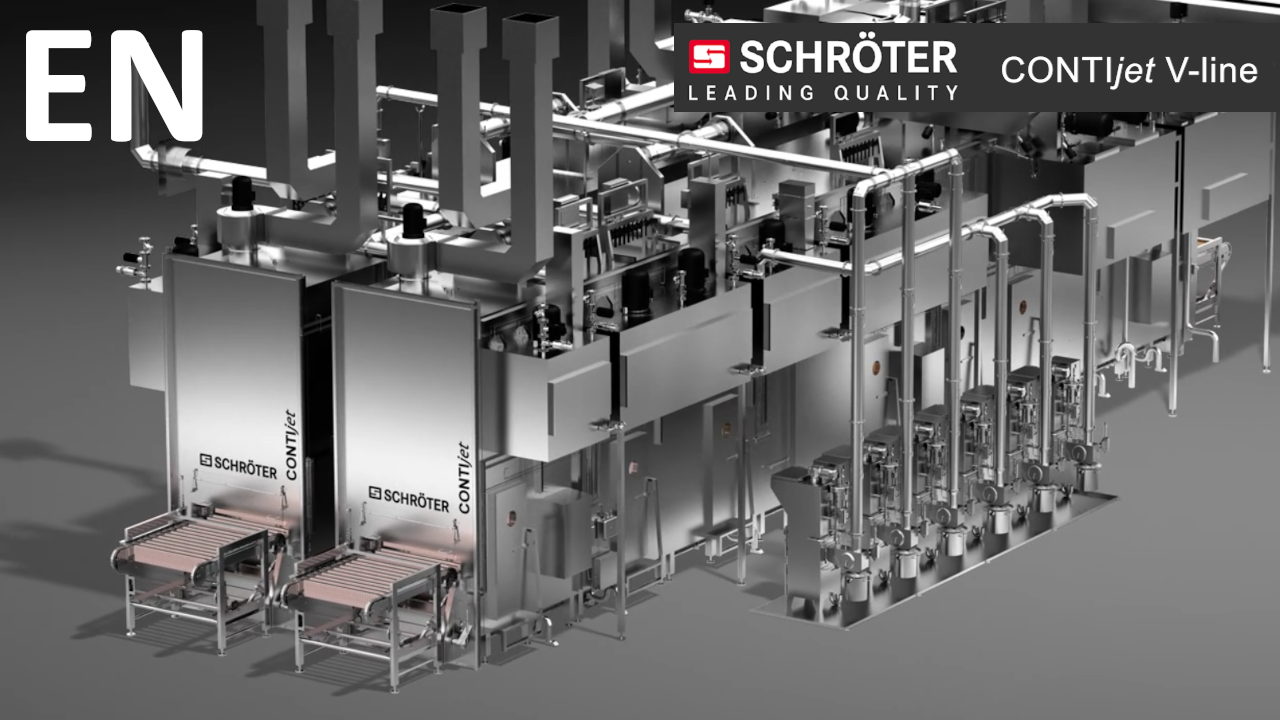

V-LINE: vertical product transport

Conveyor system

Chain conveyor with automatic transport system

Degree of automation

Manual or automated loading and unloading systems

Optimum operating mode

Three-shift operation

Remote maintenance

Online access possible

Automatic inspection display

Process data management

Integration into central process control software

The most important features

Fully continuous production process for maximum output

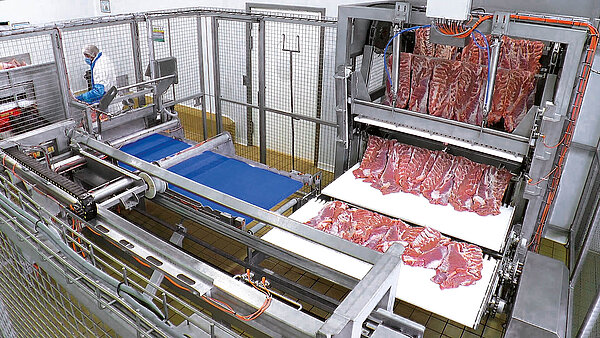

Option of automatic loading and unloading using robot units
Precise control and monitoring of all sections and drives
Program-controlled cleaning system for maximum hygiene

Automated systems for production

The CONTIjet® was specifically developed for high production volumes. It offers continuous processing of identical products, quickly and efficiently. The automatic system concept with automated loading and unloading system minimizes the use of staff while maximizing throughput.

Intelligent control and integration

With the CONTIjet®, users benefit from consistently uniform product results. The automatic control system monitors the individual sections from input to output. Process control software documents the processes and ensures trouble-free operation. The remote maintenance option provides Schröter online support for operators whenever required.

Profitability and sustainability go hand-in-hand

Another advantage of our CONTIjet® system is its energy-efficient operation. Technologies such as the recirculation of process water and precise control of heating and cooling help to reduce energy consumption and conserve resources. This makes the system an economical and sustainable solution with a short payback period.

Hygiene thanks to automatic cleaning system

The integrated cleaning system guarantees the highest hygiene standards. A central clean-in-place system efficiently cleans all areas such as air ducts, air circulation fans, and sectional process areas. This significantly reduces the consumption of cleaning agents and rinsing water, also thanks to the process-controlled operation.
